trace-decoder.h File Reference

Trace decoder usage model, events, and common error codes. More...

#include "msg-decoder.h"
#include "hist-array.h"
#include "return-stack.h"

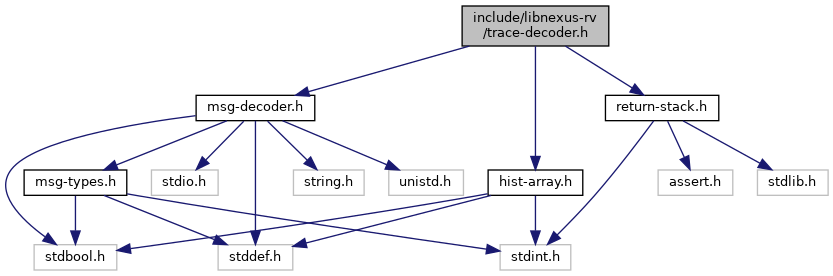

Include dependency graph for trace-decoder.h:

Go to the source code of this file.

Classes
struct	nexusrv_trace_indirect
	NexusRV Trace Indirect Branch Event. More...
struct	nexusrv_trace_sync
	NexusRV Trace Sync Event. More...
struct	nexusrv_trace_error
	NexusRV Trace Error Event. More...
struct	nexusrv_trace_stop
	NexusRV Stop Event. More...
struct	nexusrv_trace_decoder
	NexusRV Trace decoder context. More...

Typedefs
typedef struct nexusrv_trace_indirect	nexusrv_trace_indirect
	NexusRV Trace Indirect Branch Event. More...
typedef struct nexusrv_trace_sync	nexusrv_trace_sync
	NexusRV Trace Sync Event.
typedef struct nexusrv_trace_error	nexusrv_trace_error
	NexusRV Trace Error Event.
typedef struct nexusrv_trace_stop	nexusrv_trace_stop
	NexusRV Stop Event.
typedef struct nexusrv_trace_decoder	nexusrv_trace_decoder
	NexusRV Trace decoder context. More...

Enumerations
enum	nexusrv_trace_events {   NEXUSRV_Trace_Event_None , NEXUSRV_Trace_Event_Direct , NEXUSRV_Trace_Event_DirectSync , NEXUSRV_Trace_Event_Trap ,   NEXUSRV_Trace_Event_Indirect , NEXUSRV_Trace_Event_IndirectSync , NEXUSRV_Trace_Event_Sync , NEXUSRV_Trace_Event_Stop ,   NEXUSRV_Trace_Event_Error }
	NexusRV trace events.

Functions
int	nexusrv_trace_decoder_init (nexusrv_trace_decoder *decoder, nexusrv_msg_decoder *msg_decoder)
	Initialize the trace decoder. More...
void	nexusrv_trace_decoder_fini (nexusrv_trace_decoder *decoder)
	Finialize the trace decoder. More...
int32_t	nexusrv_trace_try_retire (nexusrv_trace_decoder *decoder, uint32_t icnt, unsigned *event)
	Try to retire icnt from trace. More...
int	nexusrv_trace_sync_reset (nexusrv_trace_decoder *decoder, nexusrv_trace_sync *sync)
	Synchronize the trace decoder. More...
int	nexusrv_trace_next_tnt (nexusrv_trace_decoder *decoder)
	Get the next taken-not-taken. More...
void	nexusrv_trace_push_call (nexusrv_trace_decoder *decoder, uint64_t callsite)
int	nexusrv_trace_pop_ret (nexusrv_trace_decoder *decoder, uint64_t *callsite)
unsigned	nexusrv_trace_callstack_used (nexusrv_trace_decoder *decoder)
int	nexusrv_trace_next_indirect (nexusrv_trace_decoder *decoder, nexusrv_trace_indirect *indirect)
	Get the next indirect branch. More...
int	nexusrv_trace_next_sync (nexusrv_trace_decoder *decoder, nexusrv_trace_sync *sync)
	Get the next Sync event. More...
int	nexusrv_trace_next_error (nexusrv_trace_decoder *decoder, nexusrv_trace_error *error)
	Get the next Error event. More...
int	nexusrv_trace_next_stop (nexusrv_trace_decoder *decoder, nexusrv_trace_stop *stop)
	Get the next Stop event. More...

Detailed Description

Trace decoder usage model, events, and common error codes.

The main function is nexusrv_trace_try_retire. The user of the trace decoder is expected to be calling this function a lot. Assuming we are currently synchronized to a code block (a sequence of instructions without branch in between). The caller can try to retire the whole block by calling it, and see how many instructions can be successfully retired before hitting a event. This allows the caller to determine if there's any interrupt/exception occurred in the middle of the block, and if the Direct/Indirect branch or other expected event is pending at the end of the block. The events can then be consumed by calling the corresponding nexusrv_trace_next_x function.

• NEXUSRV_Trace_Event_None: In BTM mode, no event pending. In HTM mode, a TNT might be pending. Use nexusrv_trace_next_tnt to retrieve it
• NEXUSRV_Trace_Event_Direct: A direct branch is pending. Use nexusrv_trace_next_tnt to retrieve it
• NEXUSRV_Trace_Event_DirectSync: A direct branch+sync is pending. Use nexusrv_trace_next_tnt to retrieve the direct branch, or Use nexusrv_trace_next_sync to retrieve the sync. Note: use nexusrv_trace_next_sync will discard the direct branch.
• NEXUSRV_Trace_Event_Indirect: An indirect branch is pending Use nexusrv_trace_next_indirect to retrieve it
• NEXUSRV_Trace_Event_IndirectSync: An indirect branch+sync is pending Use nexusrv_trace_next_indirect to retrieve the indirect branch, or Use nexusrv_trace_next_sync to retrieve the sync. Note: use nexusrv_trace_next_sync will discard the indirect branch.
• NEXUSRV_Trace_Event_Sync: Use nexusrv_trace_next_sync to retrieve it
• NEXUSRV_Trace_Event_Stop: Use nexusrv_trace_next_stop to retrieve it
• NEXUSRV_Trace_Event_Error: Use nexusrv_trace_next_error to retrieve it

Error handling: For all the hard errors listed below, decoding should be aborted, and the only thing the caller can do is to free the trace decoder by calling nexusrv_trace_decoder_fini.
Trace decoder returns error codes at different levels:

• -nexus_no_mem: Failed to allocate memory. This is a hard error.
• -nexus_stream_bad_mseo, -nexus_stream_truncate, -nexus_stream_read_failed: Failed to fetch Message from trace file. It's reported by the Message decoder. This is a hard error.
• -nexus_msg_invalid, -nexus_msg_missing_field: Failed to decoder the Message from trace file. It's reported by the Message decoder. This is a hard error.
• -nexus_msg_unsupported: The Message is unsupported by the trace decoder. The caller can resolve the situation by handling Message itself. (via nexusrv_msg_decoder_next) Once the Message is consumed, it can retry the trace decoder function.
• -nexus_trace_eof: Expecting to decode more Messages, but there's no Message left. Decoding should be terminated. This is expected when the trace has been terminated, with or without a stop event.
• -nexus_trace_not_synced: Trace decoder hasn't been synced. The trace decoder must be synced once before calling try_retire and next_x(). The next_stop() and next_error() will also desync the decoder if returned success, and decoder should be synced again.
• -nexus_trace_hist_overflow, -nexus_trace_icnt_overflow: There are too many HIST or I-CNT ResourceFull Messages being consumed, and exceeds the capability of the trace decoder. This is a hard error
• nexus_trace_mismatch: This happens when the caller tries to get certain event (branch,sync...), but there's no such event pending. It typically means the caller is misusing the trace decoder.

Typedef Documentation

nexusrv_trace_decoder

typedef struct nexusrv_trace_decoder nexusrv_trace_decoder

NexusRV Trace decoder context.

This should be initialized by nexusrv_trace_decoder_init before calling trace decoder functions, and finalized by nexusrv_trace_decoder_fini to release resources.

nexusrv_trace_indirect

typedef struct nexusrv_trace_indirect nexusrv_trace_indirect

NexusRV Trace Indirect Branch Event.

If neither interrupt or exception is set, is a synchronous branch If both are set, it can be either but NexusRV Message doesn't report the exact type due to HW limitation

Function Documentation

nexusrv_trace_decoder_fini()

void nexusrv_trace_decoder_fini

(

nexusrv_trace_decoder *

decoder

)

Finialize the trace decoder.

Memory allocated by the trace decoder will be free'ed

Parameters

[in]

decoder

The decoder context

nexusrv_trace_decoder_init()

int nexusrv_trace_decoder_init	(	nexusrv_trace_decoder *	decoder,
		nexusrv_msg_decoder *	msg_decoder
	)

Initialize the trace decoder.

The trace decoder will start using the Message decoder msg_decoder It'll not keep state of the Message decoder, so the Message decoder can still be invoked out of trace decoder context to handle non-standard Messages or custom Messages the trace decoder can't handle.

Parameters

[out]	decoder	The decoder context
[in]	msg_decoder	The Message decoder context

Return values

==0	Success
-nexus_no_mem	Out of memory

nexusrv_trace_next_error()

int nexusrv_trace_next_error	(	nexusrv_trace_decoder *	decoder,
		nexusrv_trace_error *	error
	)

Get the next Error event.

Parameters

[in]	decoder	The decoder context
[out]	error	The consumed Error Event

Return values

>0	Successfully got Error event
<0	Error occurred, refer to common errors section

nexusrv_trace_next_indirect()

int nexusrv_trace_next_indirect	(	nexusrv_trace_decoder *	decoder,
		nexusrv_trace_indirect *	indirect
	)

Get the next indirect branch.

Parameters

[in]	decoder	The decoder context
[out]	indirect	The consumed indirect branch

Return values

>0	Successfully got Indirect branch
<0	Error occurred, refer to common errors section

nexusrv_trace_next_stop()

int nexusrv_trace_next_stop	(	nexusrv_trace_decoder *	decoder,
		nexusrv_trace_stop *	stop
	)

Get the next Stop event.

Parameters

[in]	decoder	The decoder context
[out]	stop	The consumed Stop Event

Return values

>0	Successfully got Stop event
<0	Error occurred, refer to common errors section

nexusrv_trace_next_sync()

int nexusrv_trace_next_sync	(	nexusrv_trace_decoder *	decoder,
		nexusrv_trace_sync *	sync
	)

Get the next Sync event.

Parameters

[in]	decoder	The decoder context
[out]	sync	The consumed Sync Event

Return values

>0	Successfully got Sync event
<0	Error occurred, refer to common errors section

nexusrv_trace_next_tnt()

int nexusrv_trace_next_tnt

(

nexusrv_trace_decoder *

decoder

)

Get the next taken-not-taken.

Parameters

[in]

decoder

The decoder context

Return values

==0	Branch not taken
>0	Branch taken
<0	Error occurred, refer to common errors section

nexusrv_trace_sync_reset()

int nexusrv_trace_sync_reset	(	nexusrv_trace_decoder *	decoder,
		nexusrv_trace_sync *	sync
	)

Synchronize the trace decoder.

If the decoder is already synchronized, do nothing. Else, forward till we get the next SYNC Message, and synchronize the trace decoder using it. The I-CNT and HIST will be cleared. The Address and Timestamp will be set to the Message. To not lose track of the reason of the SYNC Message, the caller should store the sync event when there is one.

Parameters

[in]	decoder	The decoder context
[out]	sync	The Sync event

Return values

==0	Trace decoder is already synchronized
>0	Trace decoder is unsynced -> synced. The sync is set to the synchronization event indicating the address and reason.
<0	Error occurred, refer to common errors section

nexusrv_trace_try_retire()

int32_t nexusrv_trace_try_retire	(	nexusrv_trace_decoder *	decoder,
		uint32_t	icnt,
		unsigned *	event
	)

Try to retire icnt from trace.

This is the main function the trace encoder provides. Usually it's intended to be used by the caller who has the knowledge of the context and the instructions to execute. The caller can try to retire icnt that represents the block of sequential instructions (without branch) and see if successful. The decoder will report the maximum I-CNT it can retire before it hits any event, and report the first in event. If there's no event less than the range of icnt, no event will be reported, and icnt will be returned. To avoid overflow, icnt will be capped at INT32_MAX
For the caller that has no knowledge of context or instructions, it can try to retire INT32_MAX I-CNT, and check the actual I-CNT retired.
Breakdown of events reported:
NEXUSRV_Trace_Event_None: None or potentially a TNT (in HTM mode).
NEXUSRV_Trace_Event_Direct: Direct branch, use nexusrv_trace_next_tnt to retrieve
NEXUSRV_Trace_Event_Trap, NEXUSRV_Trace_Event_Indirect: Indirect branch, use nexusrv_trace_next_indirect to retrieve
NEXUSRV_Trace_Event_Sync: Sync event, use nexusrv_trace_next_sync to retrieve
NEXUSRV_Trace_Event_Stop: Stop event, use nexusrv_trace_next_stop to retrieve
NEXUSRV_Trace_Event_Error: Error event, use nexusrv_trace_next_error to retrieve

Parameters

[in]	decoder	The decoder context
	icnt	I-CNT intended to retire
[out]	event	Encountered event to report

Return values

>=0	No error occurred, and the actual I-CNT retired
<0	Error occurred, refer to common errors section
