NexusRV Trace decoder context. More...
#include <trace-decoder.h>

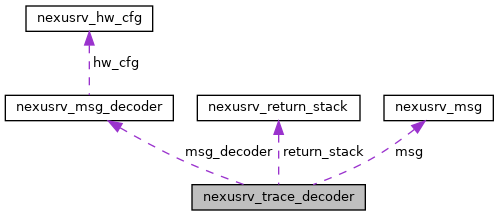

Collaboration diagram for nexusrv_trace_decoder:
Public Attributes | |
| nexusrv_msg_decoder * | msg_decoder |
| struct nexusrv_hist_array * | res_hists |
| uint32_t | res_icnt |
| uint32_t | res_tnts |
| uint32_t | consumed_icnt |
| uint8_t | consumed_tnts |
| bool | synced |
| bool | msg_present |
| nexusrv_msg | msg |
| uint64_t | full_addr |
| uint64_t | timestamp |
| nexusrv_return_stack | return_stack |
Detailed Description
NexusRV Trace decoder context.
This should be initialized by nexusrv_trace_decoder_init before calling trace decoder functions, and finalized by nexusrv_trace_decoder_fini to release resources.
Member Data Documentation
◆ consumed_icnt
| uint32_t nexusrv_trace_decoder::consumed_icnt |
Consumed I-CNT so far
◆ consumed_tnts
| uint8_t nexusrv_trace_decoder::consumed_tnts |
Consumed TNTs so far
◆ full_addr
| uint64_t nexusrv_trace_decoder::full_addr |
Address tracking
◆ msg
| nexusrv_msg nexusrv_trace_decoder::msg |
The buffered Message
◆ msg_decoder
| nexusrv_msg_decoder* nexusrv_trace_decoder::msg_decoder |
Pointer to Message decoder context
◆ msg_present
| bool nexusrv_trace_decoder::msg_present |
Indicator whether buffered Message is valid
◆ res_hists
| struct nexusrv_hist_array* nexusrv_trace_decoder::res_hists |
Accumulated HISTs in ResourceFull Messages
◆ res_icnt
| uint32_t nexusrv_trace_decoder::res_icnt |
Accumulated I-CNT in ResourceFull Messages
◆ res_tnts
| uint32_t nexusrv_trace_decoder::res_tnts |
The sum of TNTs in res_hists
◆ return_stack
| nexusrv_return_stack nexusrv_trace_decoder::return_stack |
Return stack tracking
◆ synced
| bool nexusrv_trace_decoder::synced |
Has been synced by SYNC Message?
◆ timestamp
| uint64_t nexusrv_trace_decoder::timestamp |
Timestamp tracking
The documentation for this struct was generated from the following file:
- include/libnexus-rv/trace-decoder.h
