msg-types.h File Reference

#include <stdint.h>
#include <stddef.h>
#include <stdbool.h>

Include dependency graph for msg-types.h:

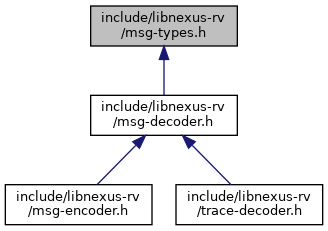

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	nexusrv_msg
	Decoded NexusRV Message. More...

Macros
#define	NEXUS_RV_BITS_TCODE   6
#define	NEXUS_RV_BITS_ETYPE   4
#define	NEXUS_RV_BITS_RCODE   4
#define	NEXUS_RV_BITS_EVCODE   4
#define	NEXUS_RV_BITS_CDF   2
#define	NEXUS_RV_BITS_ADDR_SYNC   4
#define	NEXUS_RV_BITS_ADDR_BTYPE   2
#define	NEXUS_RV_BITS_OWNERSHIP_FMT   2
#define	NEXUS_RV_BITS_OWNERSHIP_PRV   2
#define	NEXUS_RV_BITS_OWNERSHIP_V   1
#define	NEXUS_RV_BITS_CKSRC   4
#define	NEXUS_RV_BITS_CKDF   2

Typedefs
typedef struct nexusrv_msg	nexusrv_msg
	Decoded NexusRV Message.

Enumerations
enum	nexusrv_tcodes {   NEXUSRV_TCODE_Ownership = 2 , NEXUSRV_TCODE_DirectBranch = 3 , NEXUSRV_TCODE_IndirectBranch = 4 , NEXUSRV_TCODE_Error = 8 ,   NEXUSRV_TCODE_DataAcquisition = 7 , NEXUSRV_TCODE_ProgTraceSync = 9 , NEXUSRV_TCODE_DirectBranchSync = 11 , NEXUSRV_TCODE_IndirectBranchSync = 12 ,   NEXUSRV_TCODE_ResourceFull = 27 , NEXUSRV_TCODE_IndirectBranchHist = 28 , NEXUSRV_TCODE_IndirectBranchHistSync = 29 , NEXUSRV_TCODE_RepeatBranch = 30 ,   NEXUSRV_TCODE_ICT = 34 , NEXUSRV_TCODE_ProgTraceCorrelation = 33 , NEXUSRV_TCODE_VendorStart = 56 , NEXUSRV_TCODE_VendorLast = 62 ,   NEXUSRV_TCODE_Idle = 63 }
	TCODE enumeration.

Macro Definition Documentation

NEXUS_RV_BITS_ADDR_BTYPE

#define NEXUS_RV_BITS_ADDR_BTYPE   2

Number of B-TYPE bits

NEXUS_RV_BITS_ADDR_SYNC

#define NEXUS_RV_BITS_ADDR_SYNC   4

Number of SYNC bits

NEXUS_RV_BITS_CDF

#define NEXUS_RV_BITS_CDF   2

Number of CDF bits

NEXUS_RV_BITS_CKDF

#define NEXUS_RV_BITS_CKDF   2

Number of CKDF bits

NEXUS_RV_BITS_CKSRC

#define NEXUS_RV_BITS_CKSRC   4

Number of CKSRC bits

NEXUS_RV_BITS_ETYPE

#define NEXUS_RV_BITS_ETYPE   4

Number of ETYPE bits

NEXUS_RV_BITS_EVCODE

#define NEXUS_RV_BITS_EVCODE   4

Number of EVCODE bits

NEXUS_RV_BITS_OWNERSHIP_FMT

#define NEXUS_RV_BITS_OWNERSHIP_FMT   2

Number of PROCESS.FORMAT bits

NEXUS_RV_BITS_OWNERSHIP_PRV

#define NEXUS_RV_BITS_OWNERSHIP_PRV   2

Number of PROCESS.PRV bits

NEXUS_RV_BITS_OWNERSHIP_V

#define NEXUS_RV_BITS_OWNERSHIP_V   1

Number of PROCESS.V bits

NEXUS_RV_BITS_RCODE

#define NEXUS_RV_BITS_RCODE   4

Number of RCODE bits

NEXUS_RV_BITS_TCODE

#define NEXUS_RV_BITS_TCODE   6

Number of TCODE bits
